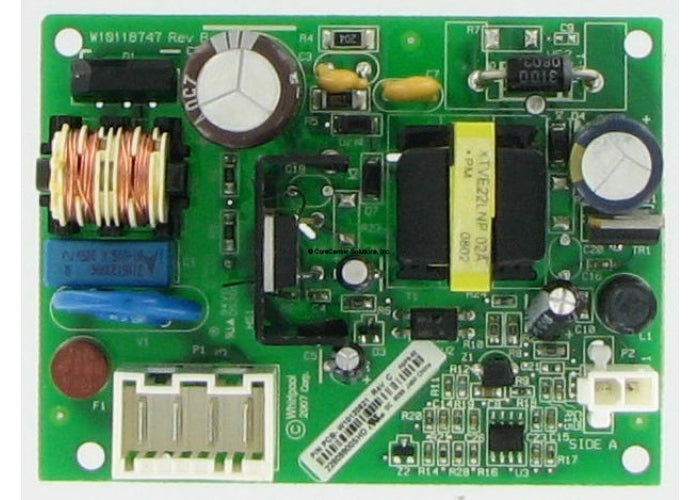

WPW10356039 Refrigerator Control Board PS11753652 W10120821 W10212584

Part Number WPW10356039 (AP6020333) replaces W10356039, 4445720, PS11753652, W10120821, W10212584, W10268607.

This replacement  part is a control board for refrigerators. It controls the digital display of the refrigerator. If the digital display is no longer visible and the buttons are no longer operating properly, it might be time to replace the control board. Luckily replacing the control board on a refrigerator with a digital display is a relatively simple process. To begin, start by unplugging the refrigerator. Then remove the display board by popping it out of the mounting brackets that attach to the refrigerator. Once the dispenser and display have been removed, access the old control board. Unfasten the screws attaching it to the refrigerator and remove the wire harness along with any individual wires. Be sure to take note of the orientation of the wires. Re-insert them into the correct terminals on the new board and reattach the new board to the refrigerator. reinstall the dispenser and display board and restore power to the refrigerator.
