WPW10276647 DLB5985WPEE Evaporator Fan Motor W11334745 W10252866 W10252870 W11050039

WPW10276647 DLB5985WPEE Evaporator Fan Motor W11334745 W10252866 W10252870 W11050039

$90.99 USD
$90.99 USD
Sale Sold out

  • Part Number W11334745 (AP6892458) replaces WPW10276647, W10276647, W10252866, W10252870, W11050039.

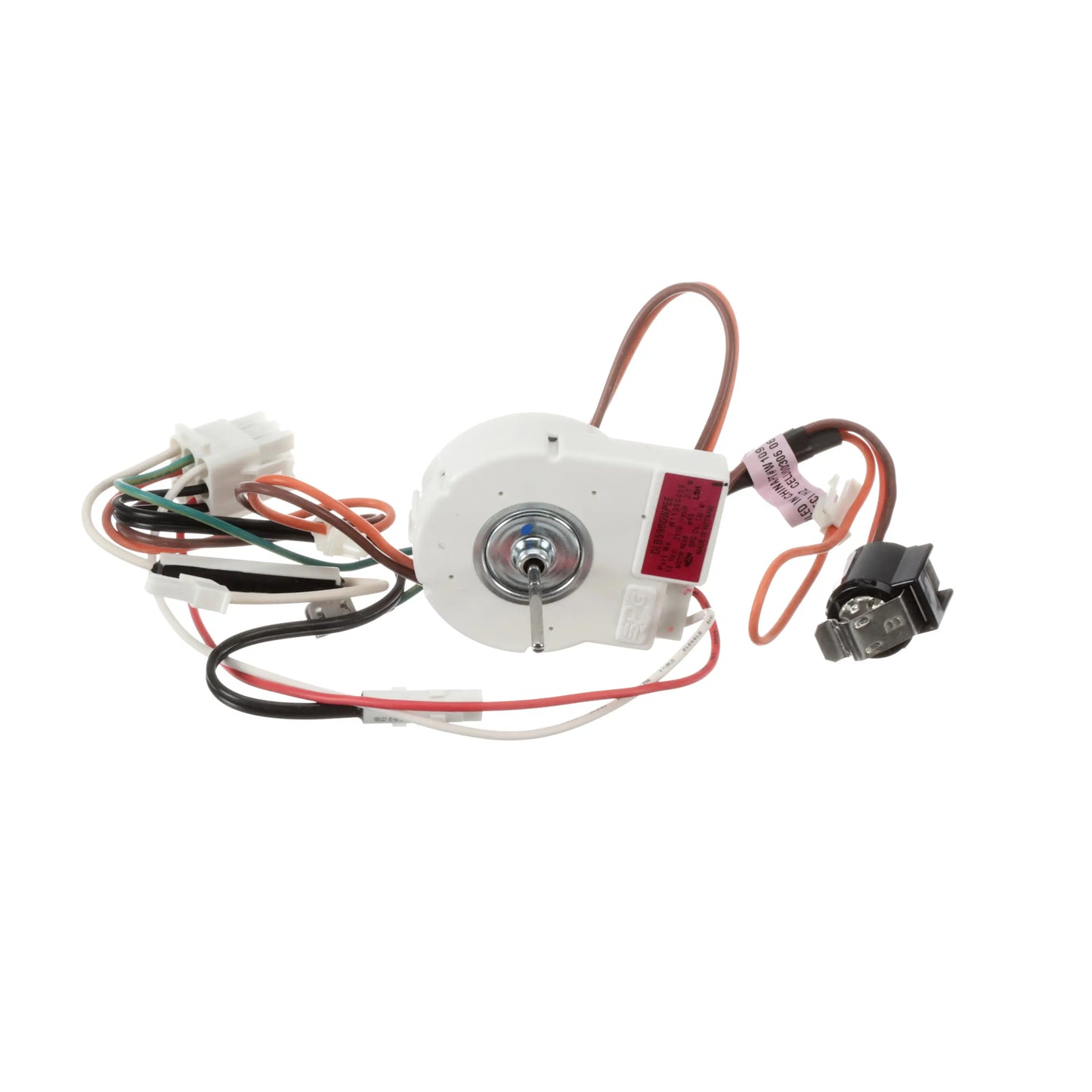

    The Refrigerator Evaporator Fan Motor is an Replacement Part designed to keep the temperature in your Whirlpool refrigerator.
    This part includes a harness and a defrost heater thermostat.
    The motor cools off the evaporator to keep your refrigerator at around 35 degrees. The fan motor only receives voltage when the cabin has warmed up enough to need cold air.

    To test this motor, it is recommended to place the appliance into a diagnostic mode and select the service test for the evaporator fan motor.
    If the fan receives voltage during this test but does not run, the motor would need to be replaced.
    This evaporator fan motor plays a crucial role in the efficient operation of your refrigerator.
    It ensures a consistent and appropriate temperature for food storage.
    This motor is compatible with select Whirlpool brand models including Amana, Jenn Air, Kitchen Aid, and Maytag.
