Part Number W10629033 (AP5801669) replaces 8201670, 2209324, 2221559, 2223385, 2224047, 2304098, 2304175, 2306957, 2997771, PS8760019, W10133449.

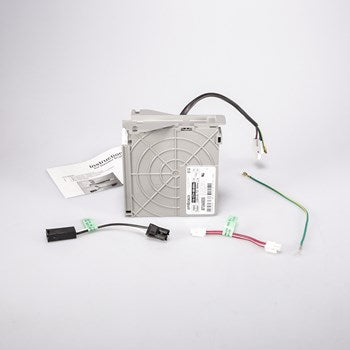

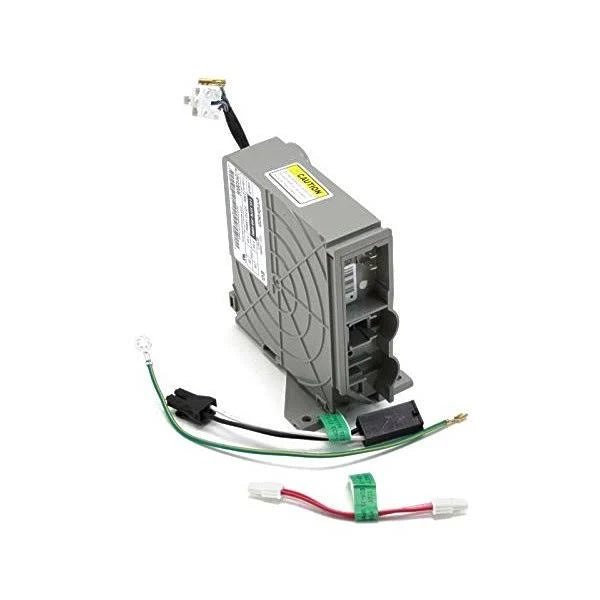

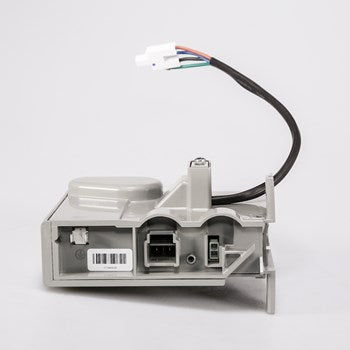

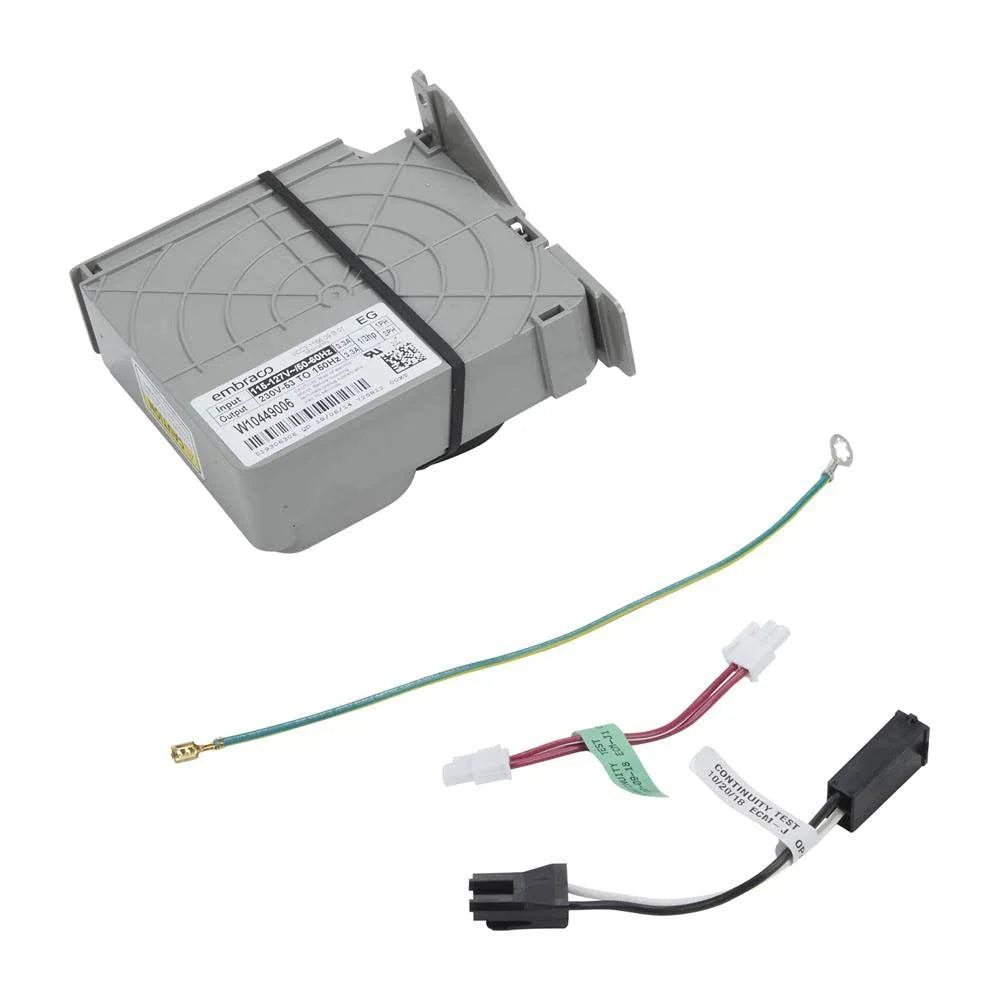

This part is an inverter board for refrigerators.
The inverter board is the part that controls the compressor at the base of the refrigerator. If the refrigerator is no longer operating properly and not maintaining temperature, this could mean it's time for a new inverter board.
Luckily replacing this part is a relatively simple process.
To replace this part, start by unplugging the refrigerator. Once unplugged, remove the lower panel at the base of the refrigerator. Locate the old inverter board and release it from its mounting brackets.
Make sure to take note of the orientation of the wire harness and any individual wires attached to the old board. Insert the wires into their correct terminals, and reinstall the base panel of the refrigerator.
This replacement part is compatible with Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Sears/Kenmore brand refrigerators.
