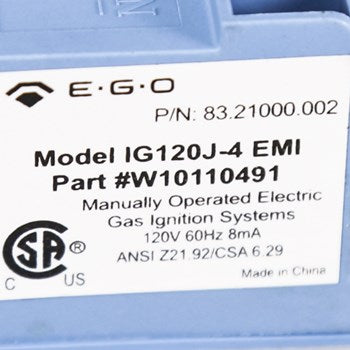

83.21000.002 Range Spark Module W10110491 Model IG120J-4 EMI

Part Number WPW10110491 (AP6015060) replaces W10110491, 1470185, 3186493, 3188112, 8522423, 8522426, PS11748331, W10110488.

• 1470185
• AP4364254
• PS2341288
• EAP2341288

The Whirlpool spark module is an replacement part responsible for controlling the ignition and sparking of the gas burners in a Whirlpool range or cooktop. The spark module is typically located behind the control panel or near the burners, and it generates the electrical sparks needed to ignite the gas for cooking.

The Whirlpool spark module can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This part fixes the following symptoms:

• Gas burners fail to ignite or have weak or inconsistent sparks
• Continuous sparking even after the burner is lit
• No spark at all when attempting to ignite the burners
• Unresponsive or non-functional burner control knobs
• Visible damage, such as burn marks or corrosion, on the spark module

This part fixes the following symptoms

• Won't start
